The ideal solution for 360° photography of components
Automated 360° captures for precise documentation and analysis—seamlessly integrated into your QTRIX processes. Create consistent, high-quality panoramic images efficiently and without manual effort.
Automation made easy:
360° turntables for professional product photography.
With Calidat turntables, you can create professional 360° images of assemblies, components, and individual parts in no time. Whether in teardown workshops, benchmarking, or documenting perceived quality features, the turntable delivers consistent, high-quality 360° images—fully automated and seamlessly integrated into the QTRIX platform.
Smart. Flexible. Powerful.
Our turntables are the ideal solution for 360° photography of components of all sizes. With load capacities ranging from 20 kg to 300 kg , Calidat covers everything—from delicate electronic parts to heavy industrial components.
Versatile: Use at your workstation for efficient teardowns or in a studio for professional imaging.
Compact & precise: The CT20 is perfect for small parts and fast captures
Future-ready: An optional weighing module will soon enable direct weight capture with automatic transfer to QTRIX.
How It Works
The turntable connects via Bluetooth to the QTRIX Camera App on your iPhone. Within the app, you define the number of shots per rotation and the desired image quality. With a single click, the automated process starts: The object rotates, the app captures all images, and stores them directly in the QTRIX system—automatically assigned to the correct component or object. If desired, images are automatically background-removed, resulting in ready-to-use product visuals without any post-processing.
Key Highlight
The automatic background removal delivers professional product images instantly—ready for reports, presentations, and databases without additional editing.

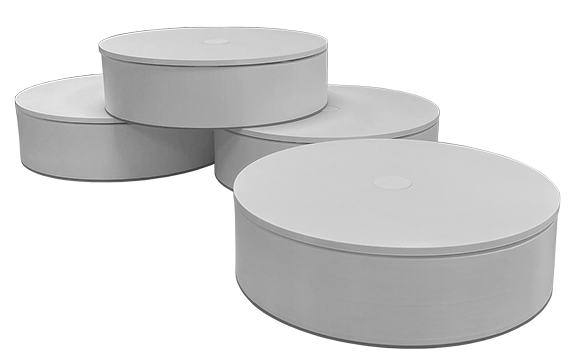

Turntable CT20
- Maximum load: 20 kg (centered)
- Plastic housing with steel shaft
- Turntable diameter: approx. 400 mm
- Housing: approx. 220 × 220 mm
- Height: approx. 160 mm
- Backlash-free belt drive
- Stepper motor NEMA 23 with gearbox
- Bluetooth integration with QTRIX Camera App
- 230 V power supply

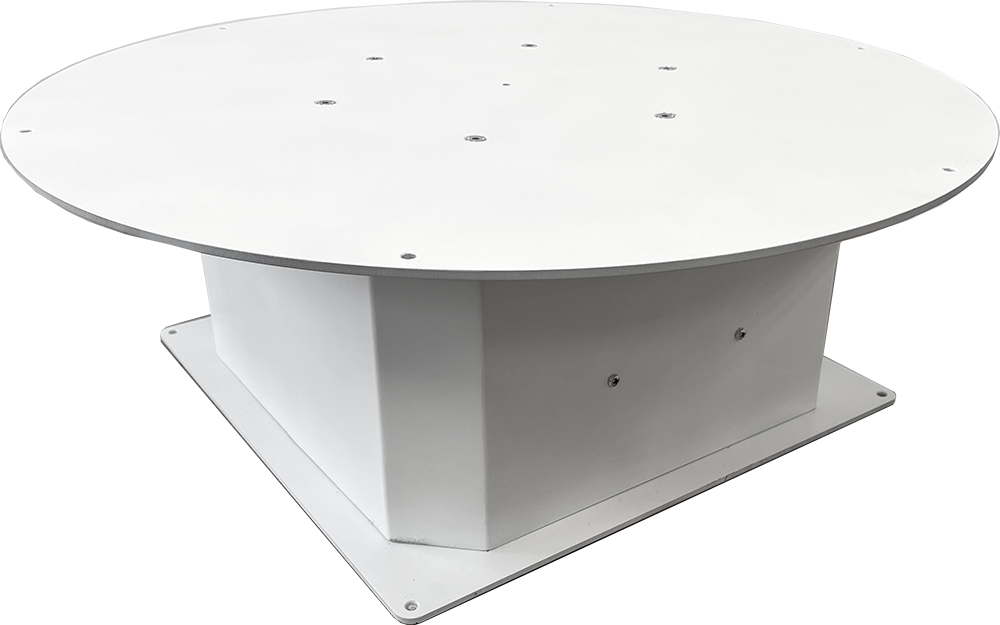

Turntable CT100
- Maximum load: 100 kg (centered)
- Closed, welded/bolted construction
- Powder-coated (color selectable)
- Turntable diameter: approx. 600 mm
- Housing: approx. 350 × 350 mm steel sheet
- Height: approx. 200–250 mm
- Base: 400 × 400 × 4 mm
- Backlash-free belt drive
- Stepper motor NEMA 23 with gearbox
- Bluetooth integration with QTRIX Camera App
- 230 V power supply

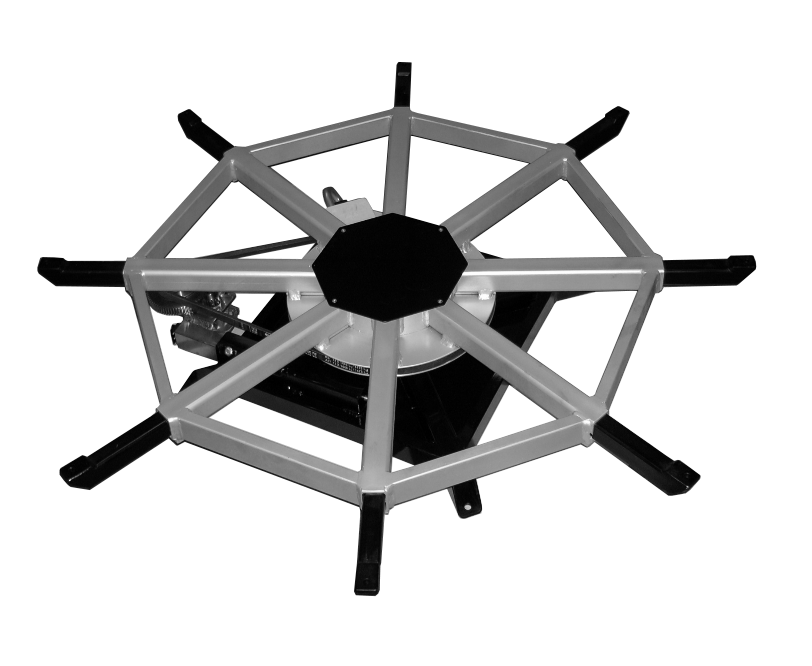

Turntable CT300
- Maximum load: 300 kg
- Open, welded/bolted construction
- Powder-coated (color selectable)
- Turntable flange diameter approx. 950 mm
- Base with 4 feet: approx. 900 × 900 × 200 mm
- With 8 support arms, extendable to approx. 1,200 mm
- Backlash-free belt drive
- Stepper motor NEMA 23/24 with gearbox
- Bluetooth integration with QTRIX Camera App
- 230 V power supply
Seamlessly Integrated into the QTRIX Platform
The turntable is not a standalone device—it is an integral part of the QTRIX ecosystem. The generated 360° images are automatically linked to the correct iTEM in your database, making them immediately available for benchmarking analyses, Perceived Quality assessments, Value Engineering projects, or teardown documentation. All images can be accessed directly via the integrated 360° viewer in QTRIX—for your entire team, worldwide.
Our customers at Forvia use the Calidat turntable, for example, to automatically create professional 360° images during benchmarking workshops and transfer them directly into their global QTRIX database.
Typical Use Cases
Teardown & Benchmarking:
Fully document competitor products from every angle
Perceived Quality:
Capture surface quality, gaps, and material appearance visually and comparably
Value Engineering:
Structure components to identify and communicate optimization potential
Product Documentation:
Create high-quality visuals for reports, presentations, and PowerPoint exports directly from QTRIX
Interested or Have Questions?
we’ll help you find the right configuration for your specific use case.
